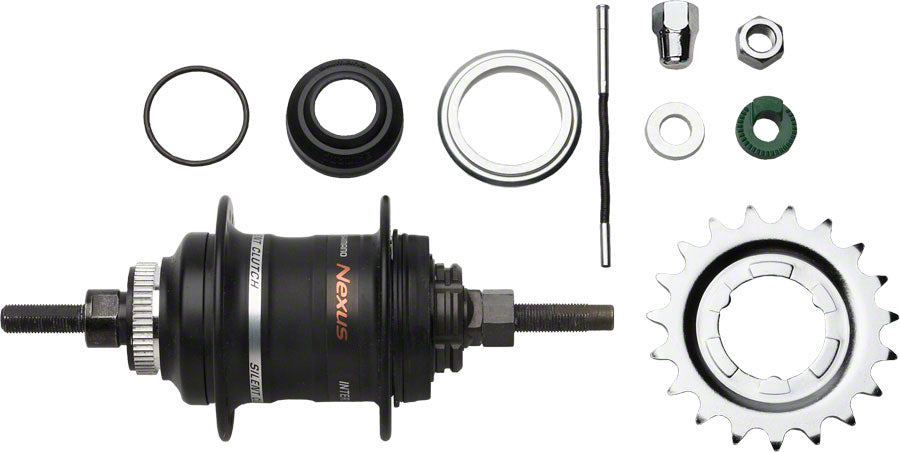

Shimano Nexus SG-3D55 3-Speed Internally Geared Disc Brake 32h Rear Hub Kit, Small Parts Included

Shimano Nexus SG-3D55 3-Speed Disc Brake Internally Geared Hubs

• Includes 19 tooth cog, push rod, hub nuts, dust cap and non-turn washer
• Centerlock disc brake rotor mount, rotor not included
• 3 speeds with a 186% gear range: 1st gear = 0.733, 2nd gear = 1.00 (direct drive), 3rd gear = 1.36
• 3-speed Nexus Shifter not included
• Must order Shifter (LD0777) and Bell Crank (LD0776) to make a fully functioning unit
• 135mm OLD
• Alloy hub shell
• Recommended gear ratio: 2.0-2.65 to 1
• Not intended for off-road use as standing on the pedals, riding up steep hills or using an too low of a gear ratio may damage the pawls inside the hub
• Rotor lockring not included

• Flange Diameter: 65 R, 65 L
• Rear Axle: 3/8" Threaded x 135mm
• Cassette Body Type: Single Cog Driver
• Drivetrain Speeds: 3
• Color: Black
• Skewer Included: No
• Bearing Type: Loose Ball
• Weight: 945
• Spoke Interface: J-Bend
• Defined Color: Black
• Hub Drilling: 32
• Hub Center to Flange (mm): 23.48 R
• Hub Center to Flange (mm): 26.82 L
• Hub/Brake Compatibility: Center-Lock Disc
