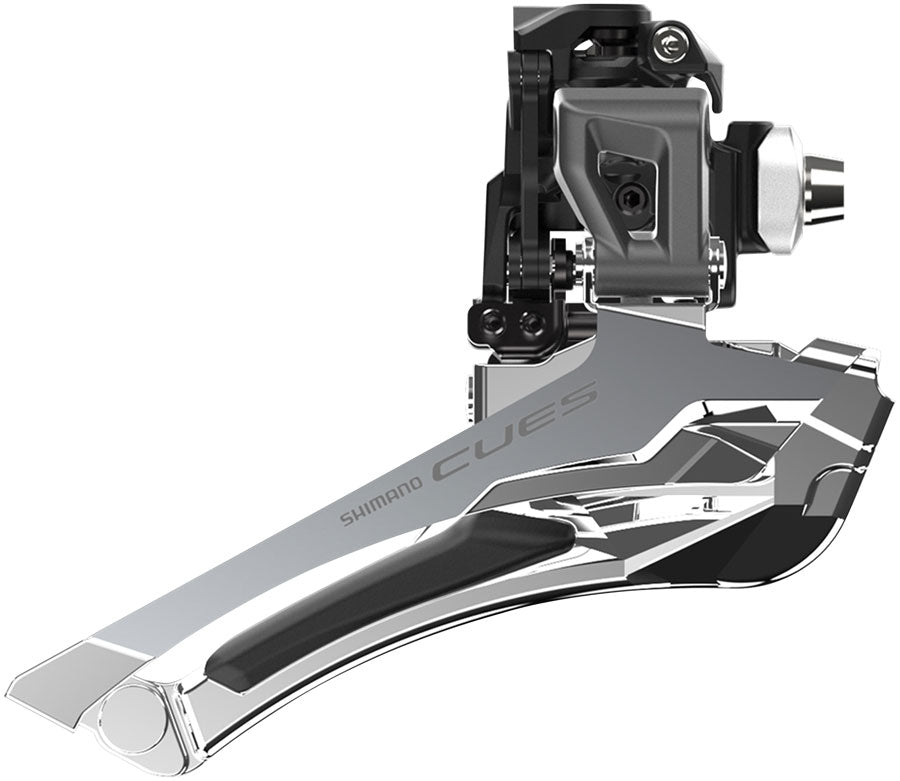

Shimano CUES FD-U6030-F Front Derailleur - 9/10-Speed, Double, Down-Swing

One Front Derailleur for all Shimano CUES Drop Handle Bikes. The Shimano CUES FD-U6030 Front Derailleur offers lighter front shifting operation and easier setup thanks to the toggle link construction and integrated cable tensioner. It features a 2.5 mm outboard chain line design to allow wider tire clearance.

• Toggle link construction delivers lighter front shifting with a smooth, natural shift action
• Chainline is 2.5 mm wider than conventional road front derailleurs, allowing for greater tire clearance
• 62-66 degree chainstay angle
• ONLY Compatible with LINKGLIDE dropbar shifting system
• Designed for 47mm chainline

• Double or Triple: Double
• Drivetrain Speeds: 9
• Drivetrain Speeds: 10
• Front Derailleur Clamp: Braze-on
• Front Derailleur Cable Pull: Bottom Pull
• Front Der/Shifter Compatibility: Shimano Road
• Max Ring (teeth): 50
• Front Derailleur Style: Traditional
• Crank-FD Type: Road Double
• Derailleur Capacity: 16
