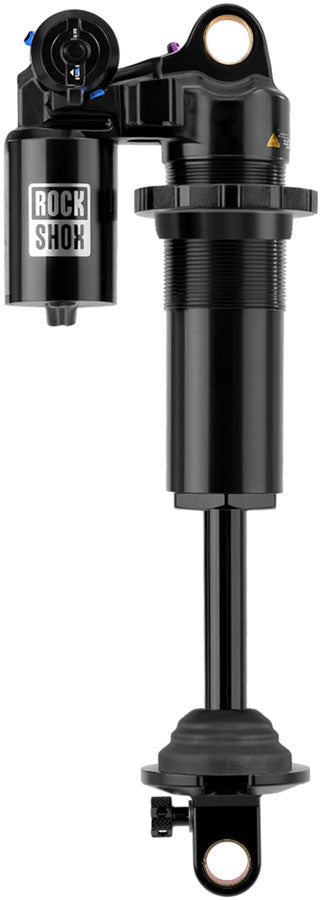

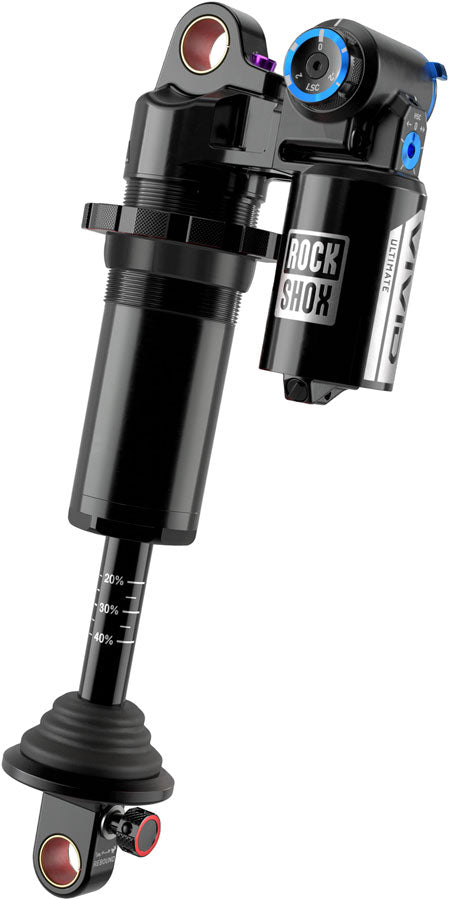

RockShox Vivid Coil Ultimate RC2T Rear Shock - 230 x 65mm, Reb 55 / Comp 34, Adj. Hydraulic Bottom Out, L/45, Standard, D1

There’s a reason everyone loves coil—the feel is unmistakable—supple off the top, supportive through the mid-stroke, and backed by Adjustable Bottom Out (ABO) for confident end-stroke control—giving you unwavering consistency and predictability. Engineered to work as a system with your fork and Charger 3.2 damper, the RC2T damper’s new main piston compression tunes deliver confident mid-stroke support, while intuitive HSC/LSC adjusters make setup fast, clear, and easy to communicate. Distilling decades of coil dominance into a shock built for today’s enduro, E-MTB, and downhill bikes, Vivid Coil Ultimate carries the unmistakable heritage of coil into a new era of performance.

• RC2T damper providing a wide, usable range of Low Speed Compression (LSC) and High Speed Compression (HSC) adjustments without any cross-talk
• Numbered Compression adjuster for intuitive adjustments—start at “0” and easily add or decrease damping
• Base valve with 40% reduction in IFP forces, making it one of the most supple shocks on the market, while maintaining perfect traction
• Main piston compression tunes matched in performance to the Charger 3.2 damper, focused on providing mid-stroke support

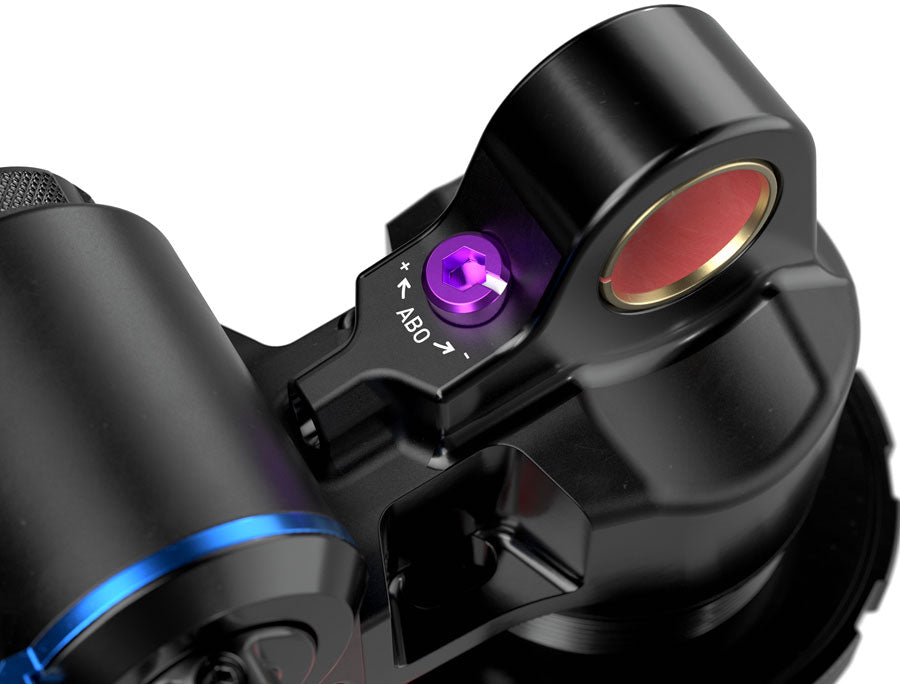

• Adjustable Bottom Out (ABO) offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travel
• Removable Rebound knob doubles as HSC and ABO adjuster
• 20 clicks of Rebound adjustment providing uniform rebound curves paired with a broad adjustment range provide a consistent ride feel for a wide spectrum of rider weights

• Stroke (mm): 65
• Lockout Switch: Shock Mounted Switch
• Eyelet Diameter (mm): 12.7
• External Adjustments: Low Speed Compression Damping
• External Adjustments: Rebound Damping
• External Adjustments: Bottom Out Resistance
• Positive Spring: Coil
• Eye to eye length (mm): 230
