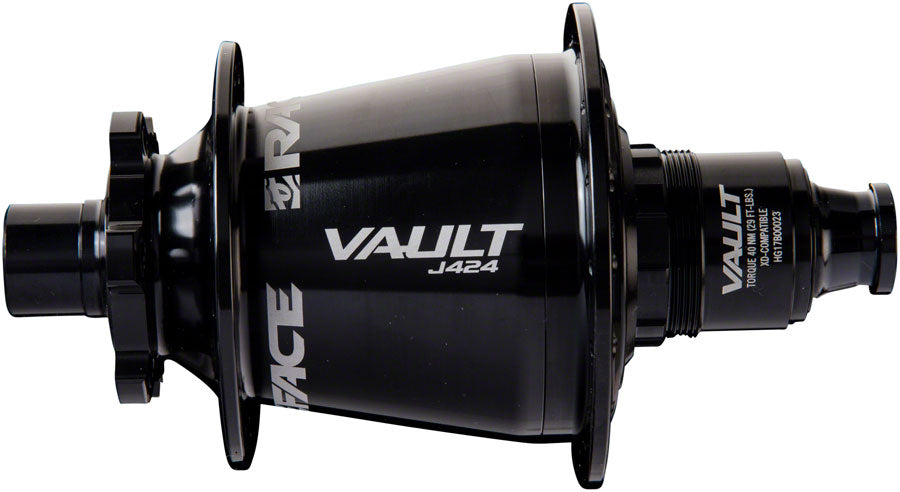

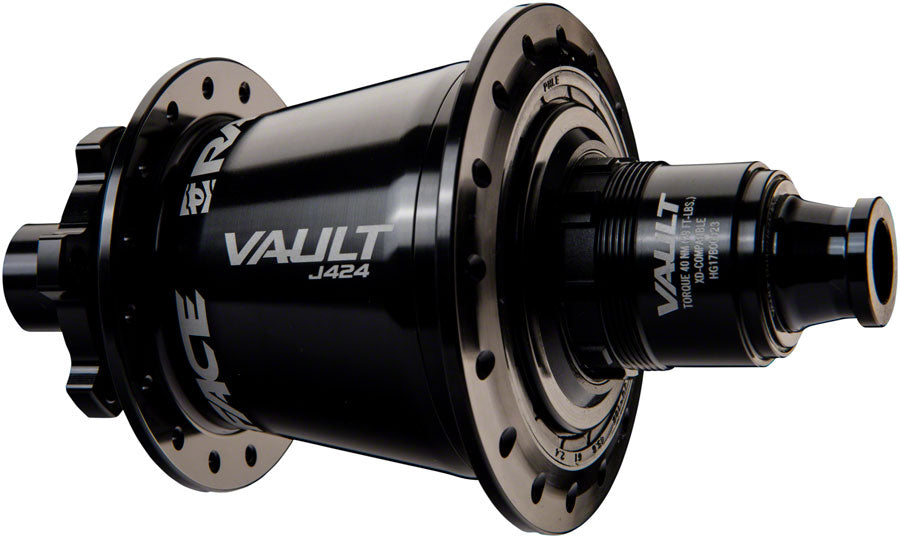

RaceFace Vault J-Bend 424 Rear Hub - 12 x 148mm, 6-Bolt, XD, Black, 32H

Vault series hubs represent a top-tier platform, engineered for riders who want quick engagement, exceptional stiffness, and long‐term durability across aggressive trail, enduro, and gravity riding. Built around a standout oversized hub shell and a high‐engagement drive system, the Vault hubs are designed to transfer rider power efficiently while withstanding heavy loads and harsh terrain.

• Oversized hub shell for increased torsional and lateral stiffness
• Proven 6902 cartridge bearings were selected due to their large ball diameter and durability
• 60 tooth drive ring alternately engages six double tooth pawls, giving you 3degree engagement for near-instant power transfer
• Wide bearing placement was designed to decrease load on the bearings, improving lifespan
• Low-drag labyrinth seals designed specifically for the Vault hubs to protect internals
• Swap endcaps without tools for hassle-free changes

• Flange Diameter, Left: 61.5
• Rear Axle: 12mm Thru x 148mm
• Flange Diameter, Right: 71.5
• Cassette Body Type: SRAM XD
• Center to Flange, Left: 36.5
• Center to Flange, Right: 23
• Color: Black
• Skewer Included: No
• Bearing Type: Sealed Cartridge
• Designed for ebike: Yes
• Defined Color: Black
• Spoke Interface: J-Bend
• Hub Drilling: 32
• Hub/Brake Compatibility: 6-Bolt Disc
