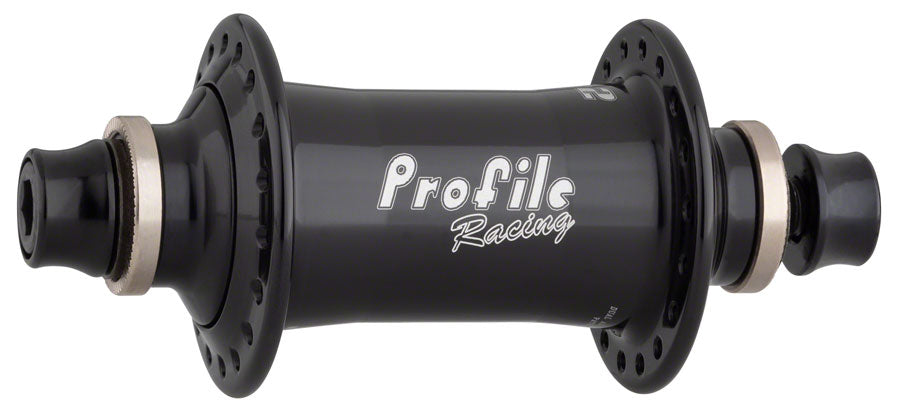

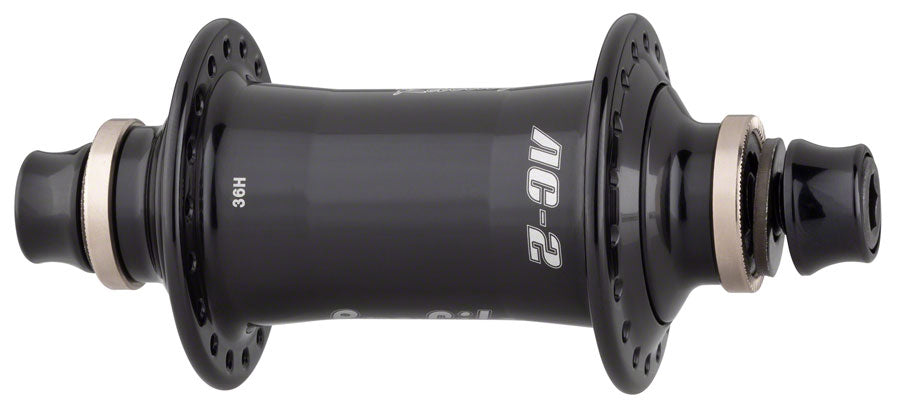

Profile Racing AC-2 Front Hub - 10 x 100mm, Rim Brake, Black

The AC-2 hubs use 20mm Angular Contact bearings with a wave spring pre-load. Bearings are pressed into tapered cups that mate with the angled bores machined into the hub shell. This design feature allows bearing/cup to be easily installed and removed from hub shell without any special tools. No more presses or hammers needed! Another attribute of the tapered bearing cup/angled hub shell bore design is how the bearings seat in the hub. The bearings/cups on each side of the hub shell are in perfect alignment with each other! This ensures superior bearing performance and less chance of premature wear.

• Hub shell and driver literally “float” on the axle. The only force on the bearings is supplied by the wave spring(which delivers the appropriate bearing pre-load needed for angular contact bearings). Tightening of axle bolts has absolutely no affect on the bearings
• The bearings, wave spring, and shim(s) are secured on the axle by one retaining ring. The only tool used to assemble/disassemble the AC-2 hub is a pair of snap ring pliers
• AC-2 hub is manufactured from a high grade, aerospace quality billet aluminum
• Axle Size: 10mm
• Axle Type: Female
• Cassette Body Type: Single Cog Driver
• Color: Black
• Defined Color: Black
• Front Axle Type: Bolt On
• Front Wheel Type: BMX
• Hub Drilling: 36
• Hub Type: Front
• Hub/Brake Compatibility: Rim Brake
• Spoke Interface: J-Bend
