KEY BENEFITS
Dynamic performance, predicable control on the trail.
Full carbon rim provides superior lateral stiffness.
Enhanced fiber lacing improves vertical compliance.
Two-cross spoke pattern on the front and rear improves ride quality and control.
Accelerate and climb faster.

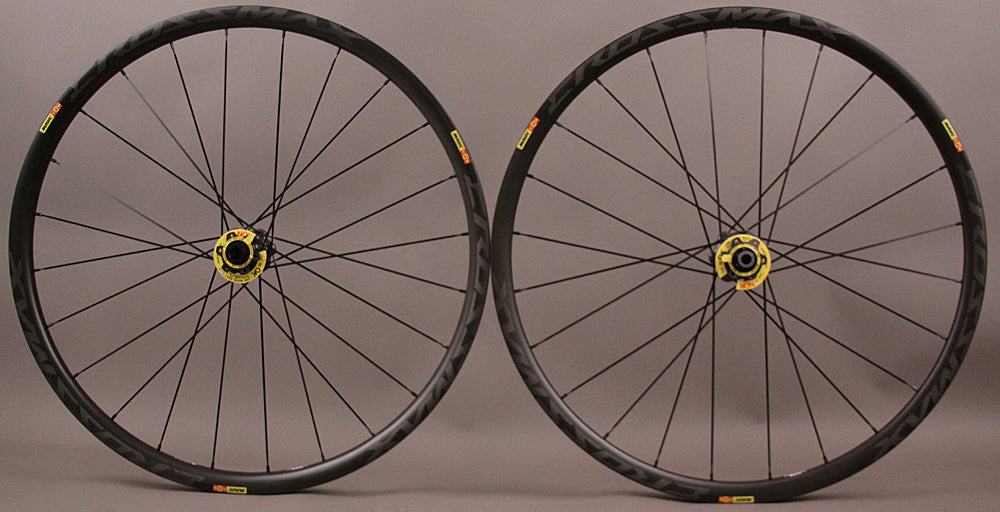

Superlight 1450g in 27.5"
Full carbon hookless rim and UST Tubeless compatibility.
Get more traction, control and speed from your wheels.
23mm front/23mm rear internal width
It costs much more to build an XC wheel with carbon than with aluminum, but racer feedback tells us the performance doesn’t always live up to the cost. That's why we engineered the Crossmax Pro Carbon to be significantly lighter and laterally stiffer than alloy, but to also have the same impact resistance and, most importantly, enough vertical compliance to achieve the ride quality synonymous with the Crossmax name.
We pushed our exclusive Finite Element Simulation software to the limit to find a carbon layup that would best balance these attributes. To ensure compatibility with the most common XC tire widths (2.1 to 2.35), we created a 26mm wide front rim for stable tire sidewalls under hard steering forces, and a 23mm wide rear rim for optimal power and acceleration. It is UST compliant for improved traction, puncture resistance and convenience, and the rim is sealed with specifically designed tape. Asymmetric rims balance the spoke tension, using 24 double-butted steel spokes to achieve that sweet spot between lateral stiffness and vertical compliance.
Compatibility
Front axle: 15mm thru axle
Rear axle: 12mm thru axle
Freewheel: Shimano/Sram or XD (for XD leave a note in your order)
Hubs
Auto adjust sealed cartridge bearings (QRM Auto), front and rear
Freewheel: ITS 4
Front and rear bodies: aluminum
Axle material: aluminum
Spokes
Shape: straight pull, flat, double butted
Material: steel
Lacing: front and rear crossed 2
Count: 24 front and rear
Rims
Use with Mavic Tubeless Tape
Hookless profile
ETRTO size 27.5" 584x23TSS
Internal width: 23 mm
Material: 100% Unidirectional carbon fiber
Drilling: traditional
Valve hole diameter: 6.5 mm
Tyre: UST Tubeless and tubetype
Intended Use
Recommended tyre sizes: 46mm to 64mm (1.8" to 2.5") front and 36 mm to 64 mm (1.4" to 2.5") rear
For a longer longevity of the wheel, Mavic recommends that the total weight supported by the wheels don't exceed 120kg, bike included
ASTM CATEGORY 3 : CROSS COUNTRY AND TRAIL RIDING
