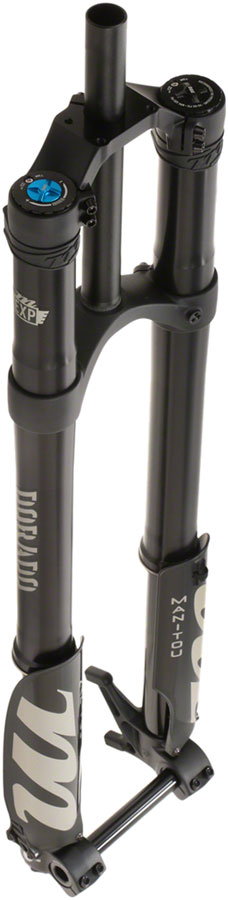

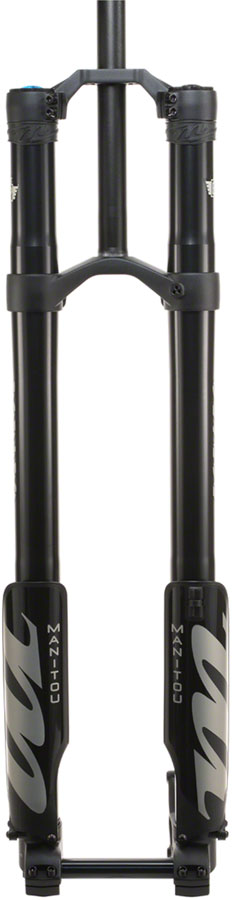

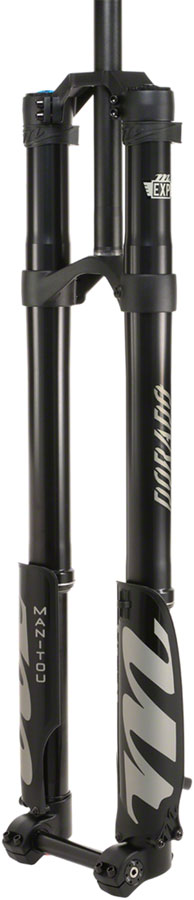

Manitou Dorado Expert Suspension Fork - 29", 203 mm, 20 x 110 mm, 57 mm Offset, Straight Steerer, Black, Gen 2

Back and better than ever, the new Dorado Expert is ready to take on the gnarliest conditions mountain biking can provide. Whether you’re looking to cut seconds off the splits, lap the local park, or get sendy in the back hills of Utah the Dorado Expert has you covered. Featuring an all new 37mm chassis, completely redesigned internals, and on-trail precision that only inverted forks can provide, the new Dorado is your ticket to the best ride you’ve ever had.

• 37mm 6000 Series Aluminum stanchions with 6000 Series Aluminum upper tubes
• Aluminum upper and lower crown, and steerer
• TPC+ with HBO damper system features separate systems that govern hydraulic bottom out, high speed and low speed compression damping, and an energy dependent damping circuit that responds to the overall oil displacement for a bottomless feel
• HBO circuit has been moved inside the damping cartridge to be fully submerged within the damping fluid to further improve end-of-stroke consistency
• New 2-bolt drop crown features increased head tube length capability with 29" wheels
• TSR Bleed screws allow excess pressure built up in the outer legs of the fork to be equalized, while hydraulic and rubber bumpers provide bottom out protection

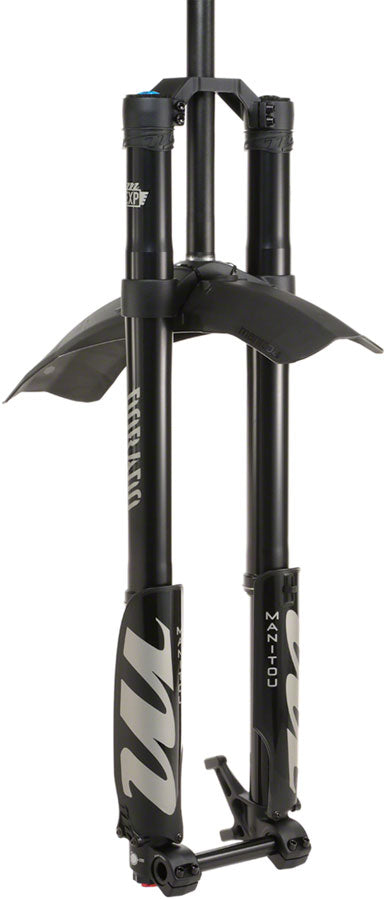

• New direct mount fender is reversible, allowing for two orientations "moto" for increased front of fork coverage, bike" for increased behind fork coverage
• Removable bolt on fender
• 180, 190, 203mm internally adjustable travel

• Steerer Type: Straight
• Brake Type: Post Mount 203
• Negative Spring: Air
• Travel (mm): 203
• Offset: 57
• Axle to Crown Length: 602
• Front Axle: 20mm Thru x 110mm
• Maximum Tire Width: 67
• S.H.I.S. Stem Clamp Diameter: Direct Mount
• S.H.I.S. Stem Clamp Diameter: 28.6
• Color: Black
• Crown Race: 30
• Weight: 3120
• Wheel Size: 29"
• External Adjustments: Rebound Damping
• External Adjustments: Low Speed Compression Damping
• External Adjustments: High Speed Compression Damping
• Defined Color: Black
• Positive Spring: Air
• Stanchion Diameter: 37
• Steerer Tube Length (mm): 251
