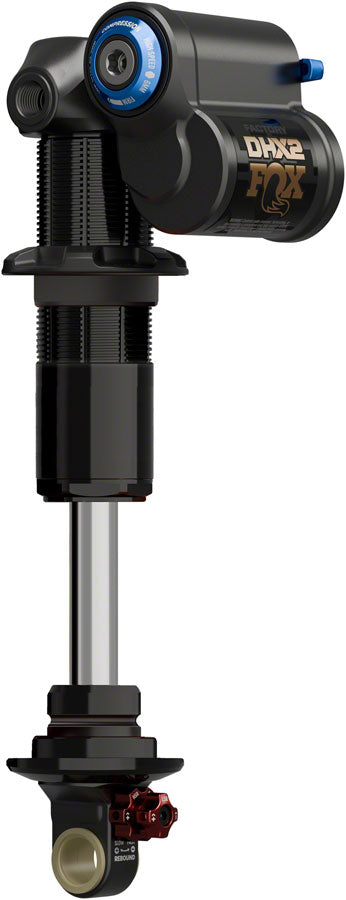

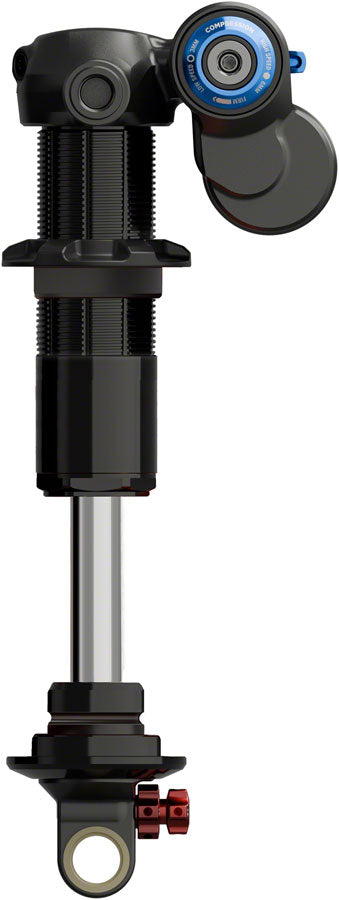

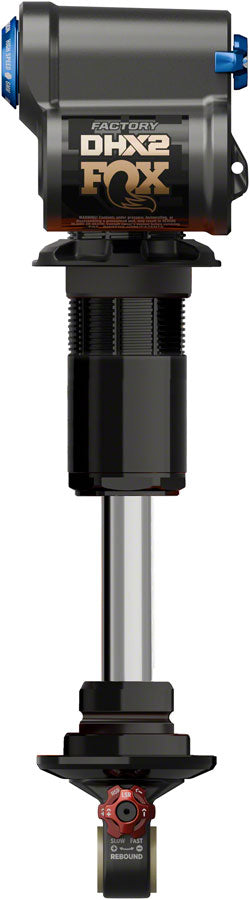

FOX DHX2 Factory Rear Shock - Trunnion Metric, 205 x 60 mm, 2-Position Lever, Hard Chromoly Damper Shaft

The World Cup proven DHX2 is full of features, delivering ultimate performance and control when the trail gets steep. Nothing sticks to the ground quite like a coil shock. The DHX2 takes the coil sensation and adds sophisticated damping, a massive overall tuning range and super low-friction internals for the ultimate gravity racing shock.

• The FOX DHX2 rear shock shares the same revolutionary 4-way adjustable monotube architecture as new FLOAT X2 platform in a silky-smooth coil spring variant (Coil Spring Sold Separately)
• 4-way adjustable – high and low speed rebound and compression
• X2 has a new larger base valve with more individual valves and is combined with a pressure balanced tune for increased support, without harshness
• More supportive Firm mode on independent circuit, now with lever detents Variable Valve Control (VVC) on high-speed rebound for race-level performance in any situation
• Detents on spring collar to low preload without coil migration
• MCU bottom out bumper for bottomless end-stroke gives riders the support and control needed on bigger hits and bottom out events

• Stroke (mm): 60
• Lockout Switch: Shock Mounted Switch
• Eyelet Diameter (mm): Trunnion, 12.7
• External Adjustments: Coil Preload
• External Adjustments: High Speed Compression Damping
• External Adjustments: Low Speed Compression Damping
• External Adjustments: Rebound Damping
• Positive Spring: Coil
• Eye to eye length (mm): 205
