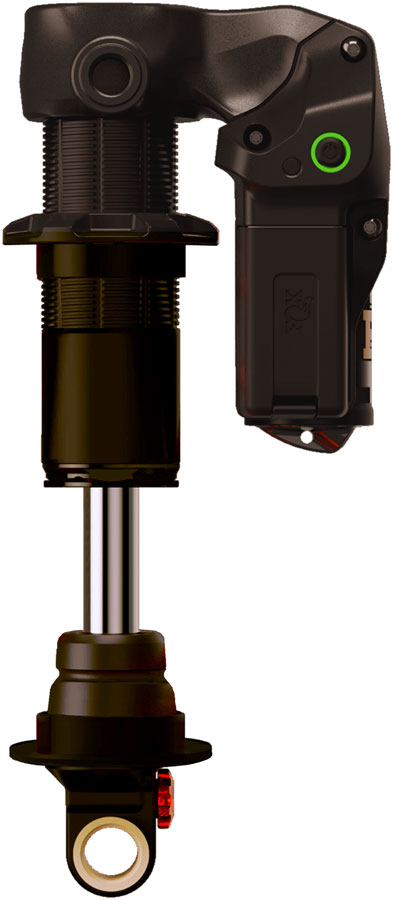

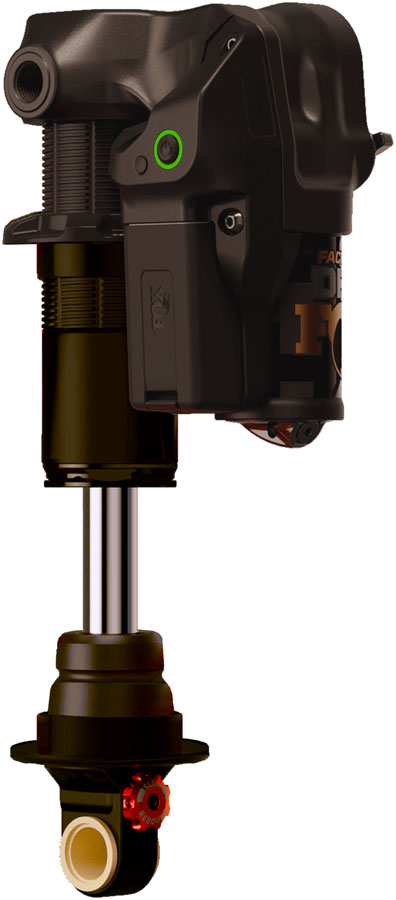

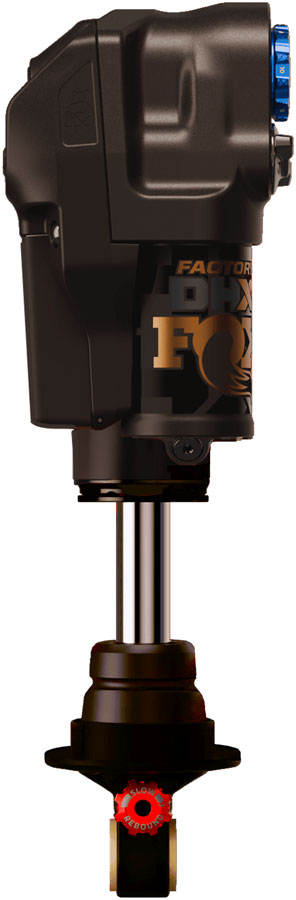

FOX DHX Live Valve Neo Factory Rear Shock - Trunnion Metric, 205 x 62.5 mm, Hard Chromoly Stanchion, Black

The coil-sprung, ground-hugging, trail-smoothing performance of DHX powers up with Live Valve Neo for the ultimate in wireless suspension control. By opening or firming the compression circuit based on trail data in 1/70th of a second, DHX Live Valve Neo lets you realize your fastest. Live Valve Neo reads terrain inputs 400 times per second and will instantly respond by giving you plushness or support. NOTE: The Live Valve Neo Kit (which includes sensors, Controller battery and mounting hardware) is sold separately and is required for the DHX Live Valve Neo shock to function as intended.

• IMPORTANT: The Live Valve Neo Kit (which includes sensors, Controller battery and mounting hardware) is sold separately and is required for the DHX Live Valve Neo shock to function
• 2-Position magnetic latching solenoid for quick and quiet transitions between open and firm shock positions
• Tool-free firm mode adjuster controls the firmness of the shock's platform when the 2-position solenoid is closed
• Numbered, tool-free 10-Click low-speed compression, 12-Click low-speed rebound, and 6-Click firm mode adjusters that can easily be adjusted trailside
• Shake to Wake function - When activated, Live Valve Neo turns on automatically when the bike moves and wheels are bumped
• A size-specific piggyback reservoir increases oil volume for enhanced bump sensitivity, greater tire grip and fade-free performance over long descents
• FOX bike app provides easy setup guides, monitors battery levels, downloads and engages Live Valve Neo tunes, tracks service intervals, and more
• Coil Spring Sold Separately

• Stroke (mm): 62.5
• Lockout Switch: Shock Mounted Switch
• Metric: Yes
• Eyelet Diameter (mm): Trunnion
• Eyelet Diameter (mm): 12.7
• External Adjustments: Low Speed Compression Damping
• External Adjustments: Rebound Damping
• External Adjustments: Coil Preload
• Positive Spring: Coil
• Eye to eye length (mm): 205
• keyword search: FOX Model Year 27
• keyword search: FOX MY27
