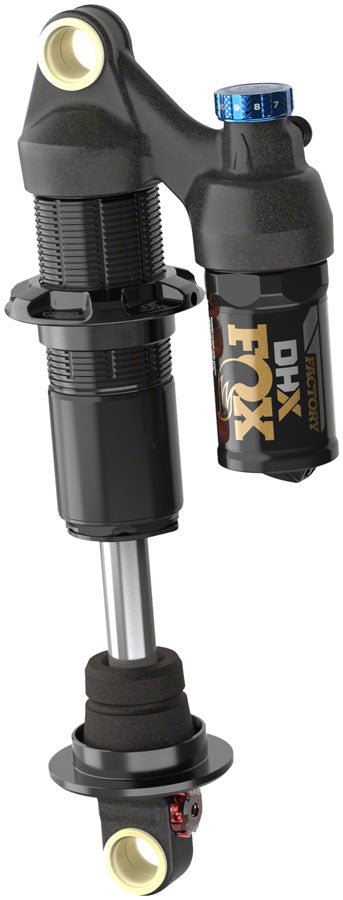

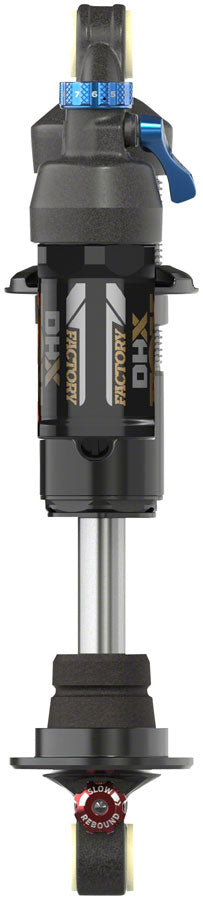

FOX DHX Factory Rear Shock - Metric, 210 x 55 mm, 2-Position Lever, Hard Chromoly Damper Shaft

The answer for riders seeking the ultimate in plush suspension, DHX brings coil-sprung, ground-hugging, trail-smoothing performance in a wide range of configurations to All-Mountain riding. The high-flow main piston assembly provides increased sensitivity, support, and rear tire grip.

• New chassis and damper
• High-flow main piston, Numbered Tool-free 12 position single-turn LSC (Low Speed Compression) adjuster
• Independent firm mode circuit – 2 position adjuster, Optimized reservoir lengths per shock size
• Hydraulic top out feature, Reduced damper noise, MCU bottom out bumper
• Single-turn rebound adjuster with a variety of access modes (Tool-free, 3mm hex (direct access), 2mm hex or similar (side access)
• Spring preload collar with detents and max / min number of clicks and direction arrow
• Coil spring sold separately

• Stroke (mm): 55
• Lockout Switch: Shock Mounted Switch
• Metric: Yes
• Eyelet Diameter (mm): 12.7
• External Adjustments: Coil Preload
• External Adjustments: Low Speed Compression Damping
• External Adjustments: Rebound Damping
• Positive Spring: Coil
• Eye to eye length (mm): 210
