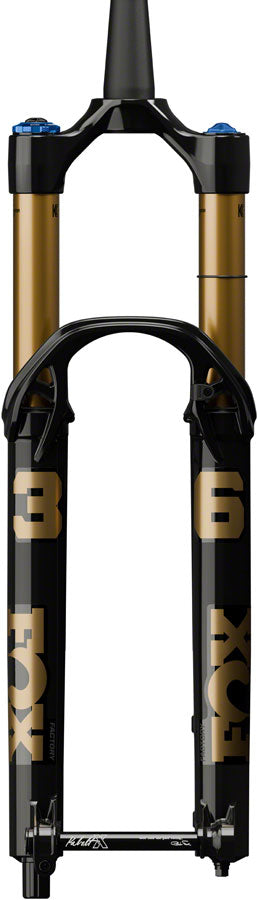

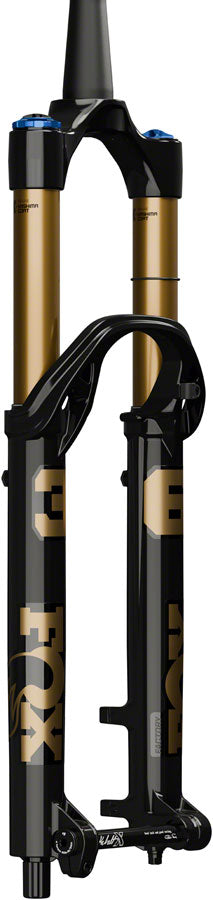

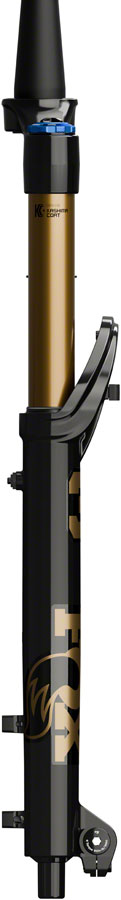

FOX 36 Factory Suspension Fork - 29", 150 mm, 15 x 110 mm, Kabolt-X, 44mm Offset, GRIP X Damper, 58HT, Shiny Black

Packed with features to dominate the descents, the 36 answers the call from aggressive all-mountain riders. Available in both trail-focused GRIP X and gravity-focused GRIP X2 damper options.

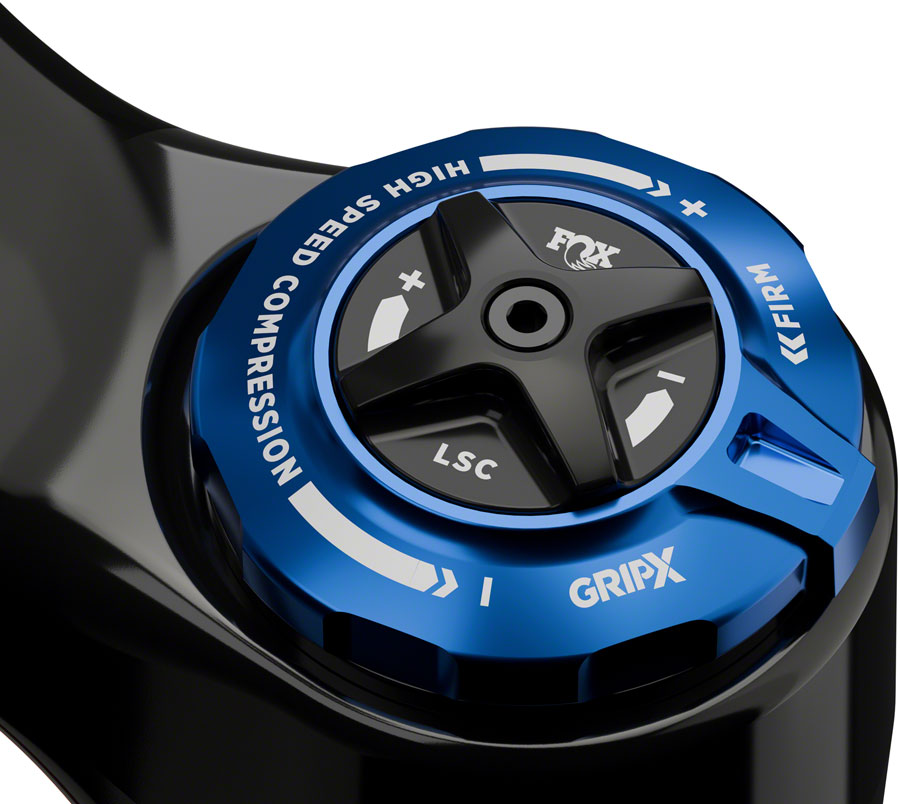

• GRIP X damper exudes exemplary descent performance, refined for less weight, easier set up and an easy access firm mode for pedaling efficiency
• Generative design-assisted lower leg arch shape increases torsional stiffness by 20%, while reducing overall material
• Additional 30mm bushing overlap than the prior model 36, reduces chassis friction, increasing stiffness and boosting performance
• New compliant FLOAT EVOL air spring design allows for a slight misalignment under load, reducing chassis friction noticeably
• Lower leg bypass channels were relocated 90° inboard to a lower stress area, reducing dynamic friction under bending forces
• Double-butted stanchion (on damper side) shaves weight, helping us achieve goal of zero weight increase

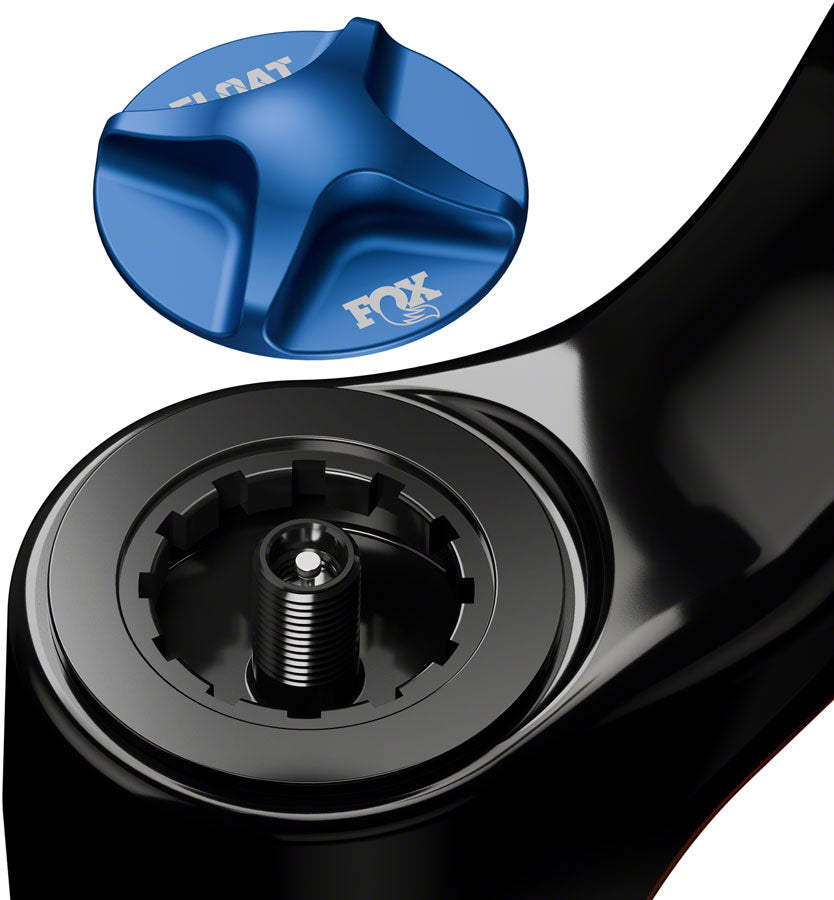

• New air spring top cap for easier air volume adjustments, removable with cassette tool (Sold separately)
• Redesigned bleeders are sleeker and easier to operate
• Kabolt X axle shaves grams while increasing torsional stiffness via a sleeveless, single-sided pinch bolt design
• Kashima Coating on upper tubes for added smoothness and durability

• Steerer Type: Tapered
• Lockout Switch: Crown
• Brake Type: Post Mount 200
• Negative Spring: Air
• Travel (mm): 150
• Offset: 44
• Axle to Crown Length: 576
• Front Axle: 15mm Thru x 110mm
• Maximum Tire Width: 66
• S.H.I.S. Stem Clamp Diameter: 28.6
• Color: Shiny Black
• Crown Race: 40
• Wheel Size: 29"
• External Adjustments: High Speed Compression Damping
• External Adjustments: Low Speed Compression Damping
• External Adjustments: Rebound Damping
• Defined Color: Black
• Positive Spring: Air
• keyword search: FOX Model Year 26 , FOX MY26
• Stanchion Diameter: 36
• Steerer Tube Length (mm): 264
