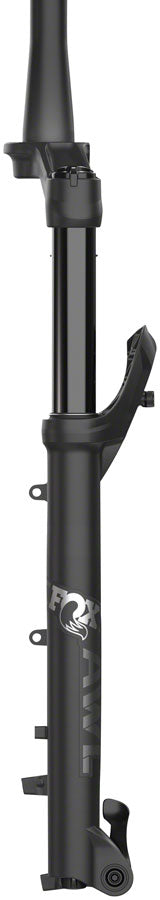

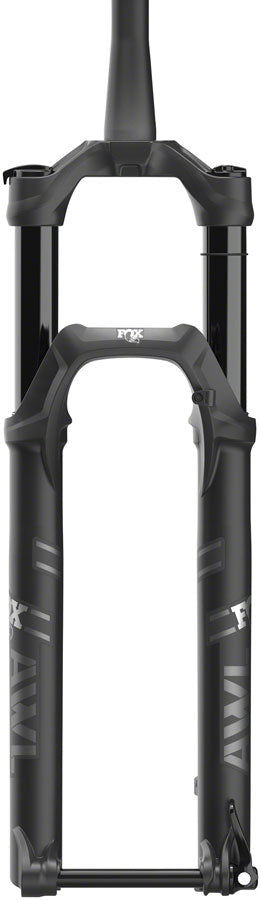

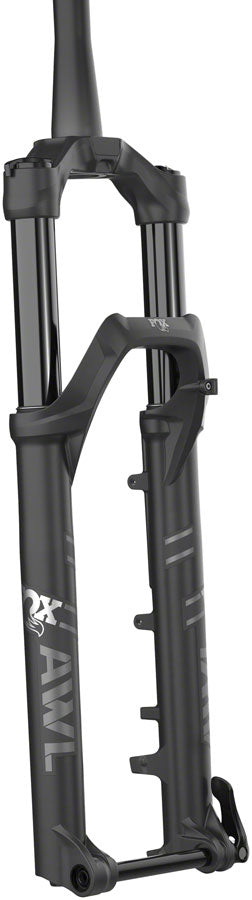

FOX 34 AWL Suspension Fork - 29", 140 mm, 15QR x 110 mm, 51 mm Offset, Matte Black, RAIL, Sweep-Adjust

Whether you’re racing to make it to your meeting across town or striving for a personal best down your favorite new trail, the AWL e-SUV fork will get you there on time and in style. Featuring an all-new chassis, RAIL damper, and different travel options, the AWL is equipped to forgive rock and roots as well as curbs and potholes. Includes integrated mounts for fenders, lights and accessories.

• Award-winning RAIL damper delivers premium suspension performance with simple yet effective adjustability and maximum durability
• Stiff 34mm e-optimized chassis meets the most stringent e-bike testing standards
• Integrated fender and light mounts delivery maximum versatility
• Clearance for tires up to 2.6” wide
• 160-230 mm rotor compatible

• Steerer Type: Tapered
• Color: Matte Black
• Lockout Switch: Crown
• Brake Type: Post Mount 180
• Crown Race: 40
• Negative Spring: Air
• Travel (mm): 140
• Wheel Size: 29"
• Offset: 51
• External Adjustments: High Speed Compression Damping
• External Adjustments: Rebound Damping
• Defined Color: Black
• Positive Spring: Air
• Axle to Crown Length: 547
• Front Axle: 15mm Thru x 110mm
• Stanchion Diameter: 34
• Maximum Tire Width: 58
• S.H.I.S. Stem Clamp Diameter: 28.6
• Steerer Tube Length (mm): 264
