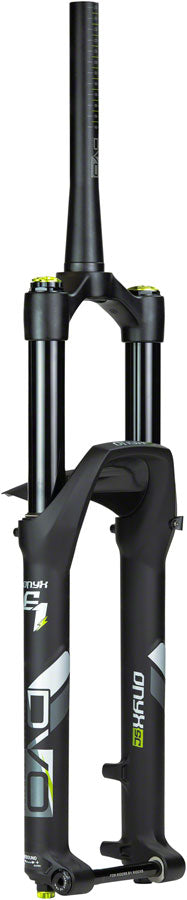

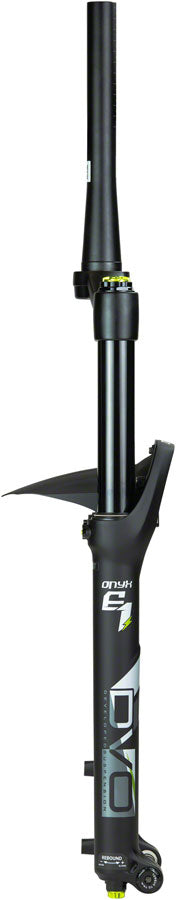

DVO Onyx SC-E1 Suspension Fork - 29", 180mm Travel, 44mm Offset, 15 x 110mm, Black

The Onyx SC-E1 series is based on the solid foundation of the D1 platform, but with an approach to accommodate the use of E-MTB’s and their luxury of ripping both up and down the trail. Due to the added weight and mileage from an E-MTB, the SC-E1 features increased bushing overlap within the casting; providing structural stability and longevity over a longer period of time. The fork utilizes the same D1 damper, helping to maintain a lighter compression tune and supple ride that keeps riders fresh until the battery runs out.

• 67% More Bushing Overlap compared to the SC-D1
• Six clicks of low speed compression give quick access to firming up the fork for pedaling, opening for descending, and mid settings for everything in between
• Over thirty clicks of High Speed Compression give precise control for support on big hits
• Shim stack controlled rebound that is 100% dynamic; meaning, the rebound is controlled based on the speed at which oil flows through the system
• Exclusive OTT (Off The Top) adjustment feature allows riders to perfectly fine tune how the initial stroke feels without any mid/end stoke compromise
• Steerer Type: Tapered
• Defined Color: Black
• Positive Spring: Air
• Wheel Size: 29"
• Offset: 44
• External Adjustments: High Speed Compression Damping
• External Adjustments: Low Speed Compression Damping
• External Adjustments: Rebound Damping
• Color: Black
• Designed for ebike: Yes

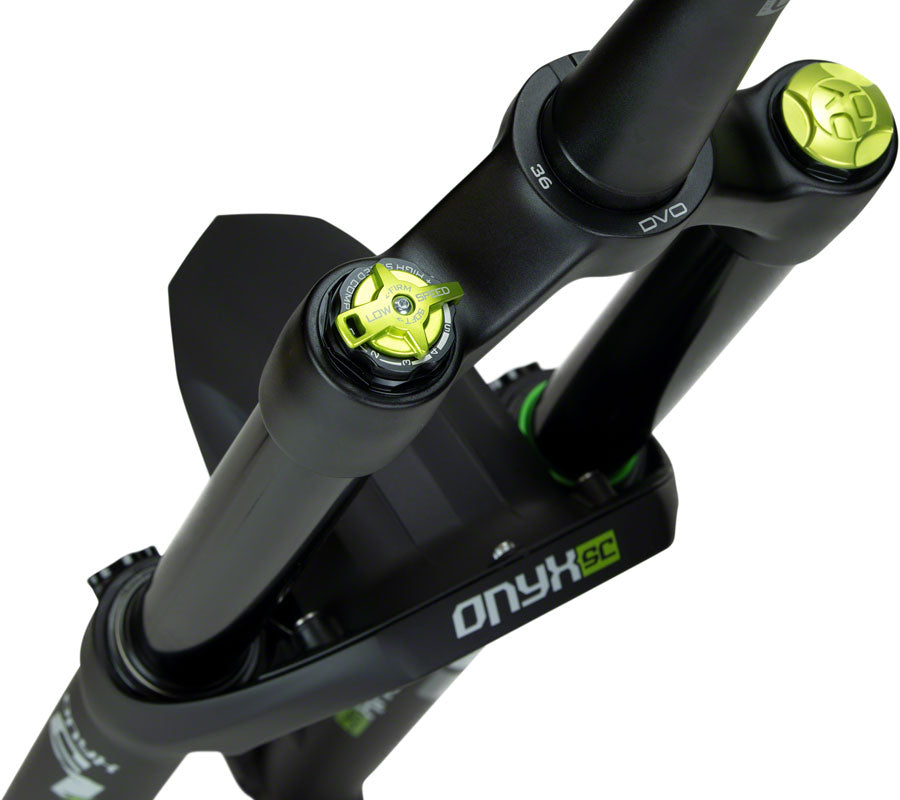

• Lockout Switch: Crown
• Negative Spring: Air
• Travel (mm): 180
• S.H.I.S. Stem Clamp Diameter: 28.6
• Steerer Tube Length (mm): 255
• Weight: 2250
• Stanchion Diameter: 36
• Axle to Crown Length: 592
• Crown Race: 40
• Front Axle: 15mm Thru x 110mm
• Brake Type: Post Mount 160
