Colnago V3 Shimano 105 Mechanical shift / Hyd Disc Carbon Road Brake Road Bike MKRD Black & Red 52s

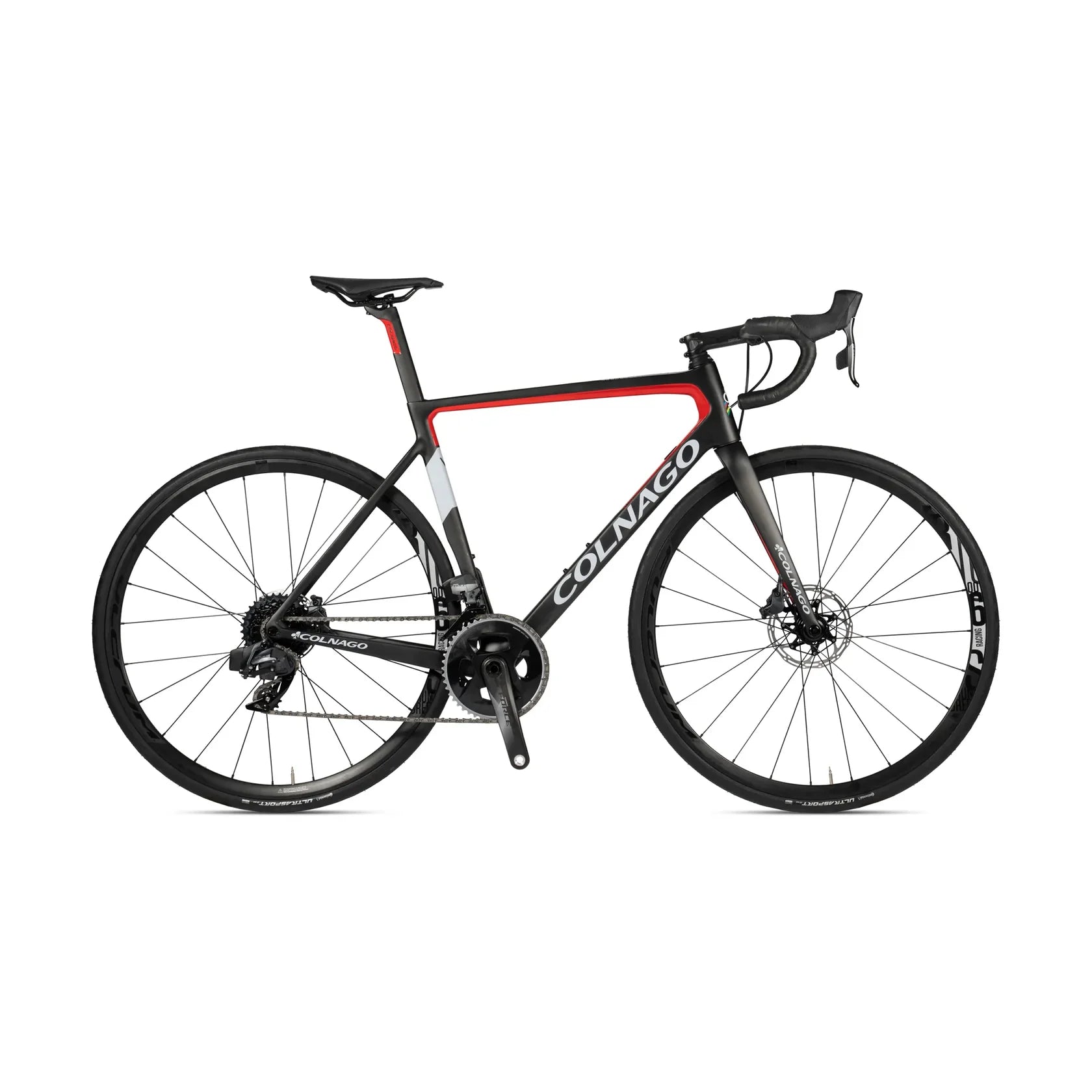

The stock image does not show the correct groupset.  We will update images soon.

The Colnago V3 Shimano 105 11spd combines technical solutions aimed at lightness along with other details designed to favor aerodynamics. The frame is monocoque carbon with a clean, essential design and can fit tires up to 28 mm. With the V3 you get a beautiful, fast Colnago that won't go unnoticed.

Quality carbon and fittings designed to offer an excellent level of performance make the V3 a perfectly balanced bike in every respect. The design combines technical features with light and aerodynamic details.

A shorter head tube and longer fork than previous models create enhanced rideability and responsiveness. These features, combined with quality carbon, make this bike perfectly suited to both climbs and flatter terrain.

Frame kit

• Frame (material): Monocoque carbon
• Fork (material, section notes): Carbon fork for disc brakes.
• Headset: ID30.1 OD41 36°/45°
• Seatpost: Carbon seatpost, 0.15 offset, "D-Shape" section
• Through axles: Diameter: 12 mm, length 100 mm (front) - 142 mm (rear)

Drivetrain

• Shifting system: Shimano 105 7020 11s mechanical Disc
• Front derailleur: Shimano 105 7000 11 speed
• Rear derailleur: Shimano 105 7000 11 speed
• Chain: Shimano 105 CN-M7000 11V
• Crankset: Shimano 105 FC-7000 50-34T
• Cassette: Shimano 105 CS-R7000 11-34 11v
• Bottom bracket: Shimano SM-BB72-41B Press Fit Movement 86.5x41
• Crank length: Sizes 42s - 48s: 170 mm, Sizes 50s - 54s: 172.5 mm, Sizes 56s - 58s: 175 mm

Brakes

• Brakes: Shimano 105, 160 mm Front / 140 mm Rear, SM-RT64 rotors
• Disc size: 160 mm Front/140 mm Rear
• Brake lever: Shimano 105 ST-R7000
• Brake caliper: Shimano 105 BR-R0

Wheels

• Wheels: Fulcrum Racing 600 DB - Tubeless ready
• Material: Rims: aluminum, Spokes: stainless steel
• Rim height: Front: 24 mm; Rear: 24 mm
• Internal channel width: 20 mm
• Hubs: Aluminum, Sealed Cartridge Bearings
• Through axles: Front: HH12-100 - Rear: HH12-142
• Tires: Pirelli P7 Sport 28 mm
• Maximum tire size: 28 mm (nominal width)

Components

• Saddle: Prologo Kappa BK, Selle Italia Model X BB FEC
• Handlebar: Deda Zero2; Sizes 42s - 48s: Width: 400 mm, Sizes 50s - 54s: Width: 420 mm, Sizes 56s - 58s: Width: 440 mm
• Stem: Deda Zero2; Sizes 42s - 45s: Length: 90 mm, Sizes 48s - 50s: Length: 100 mm, Size 52s: Length: 110 mm, Sizes 54s - 58s: Length: 120 mm, Size 58s: Length: 130 mm
• Handlebar Tape: Colnago Grip Black
• Bottle cage: Colnago Matte Black (1x)
