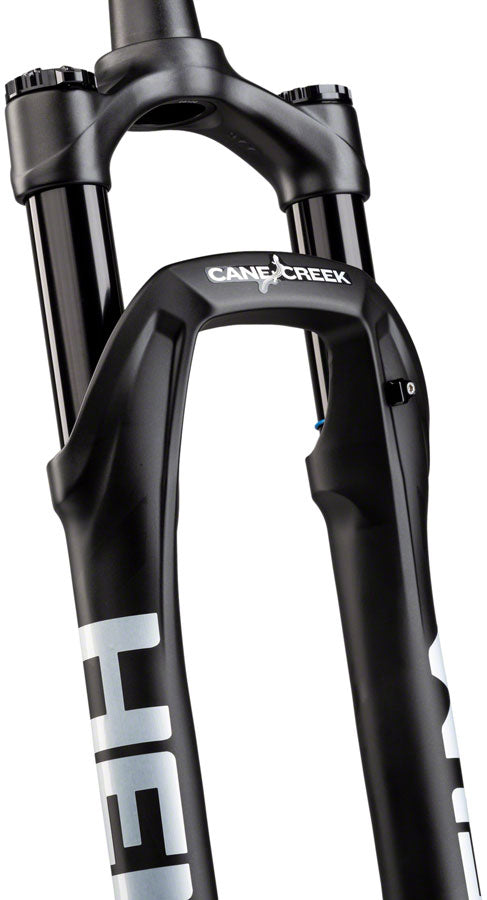

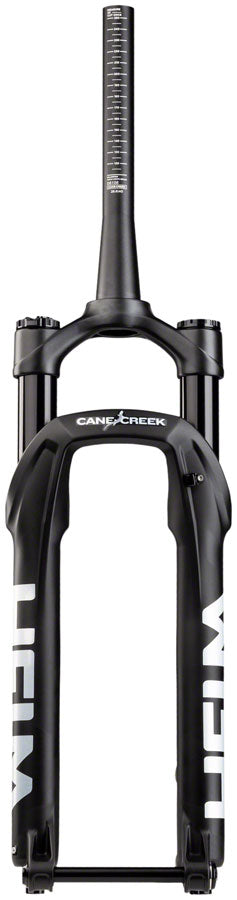

Cane Creek Helm MKII DJ Air 27.5 Suspension Fork - 27.5", 90 mm, 15 x 110 mm, 44 Offset, Matte Black

The versatility of the Cane Creek Helm fork continues with the Helm DJ. The design combines the proven performance, reliability and strength of the HELM MKII’s chassis with a new short travel air spring optimized for Dirt Jumps, Dual Slalom and Street riding.

• Preset at 90mm travel and a 483mm axle to crown to accommodate a 26″ wheel without changing the geometry of your dirt jump bicycle
• The air volume assembly is a fixed air volume setting for 90mm of travel
• Preset to 90mm of travel, utilizing five large travel reduction spacers (black) and three standard Helm MKII travel reduction spacers (red), designed to optimize the travel and air volume for Dirt Jumping applications
• 27.5” and 26” wheels. The Helm DJ is travel adjustable to accommodate different axle to crown frame requirements
• Axle to Crown Length: 483
• Brake Type: Post Mount 180
• Color: Black
• Crown Race: 40
• Defined Color: Black
• External Adjustments: High Speed Compression Damping
• External Adjustments: Low Speed Compression Damping
• External Adjustments: Rebound Damping
• Front Axle: 15mm Thru x 110mm
• Maximum Tire Width: 65
• Negative Spring: Air
• Offset: 44
• Positive Spring: Air
• S.H.I.S. Stem Clamp Diameter: 28.6
• Stanchion Diameter: 35
• Steerer Type: Tapered
• Travel (mm): 90
• Weight: 2140
• Wheel Size: 26"
• Wheel Size: 27.5"
