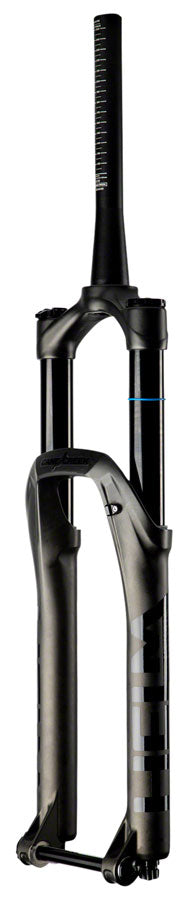

Cane Creek Helm MKII Air 27.5 Suspension Fork - 27.5", 160 mm, 15 x 110 mm, 44 mm Offset, Gloss Black

The Cane Creek Helm MKII Air Suspension Fork features an upgraded damper design for increased support and control and a redesigned air spring that allows for increased air volume for better traction and suppleness.

• Compression and midvalve circuit offer increased support and control
• SKF oil seal head cartridge and wiper seals are low friction
• The redesigned air spring offers increased air volume for better traction and suppleness
• The threadless air seal head allows for easier travel change
• Damping features include: high speed compression, low speed compression, and low speed rebound
• Adjustment options include: high speed compression (10 positions), low speed compression (17 positions), Low speed rebound (10 positions), independent positive air spring, independent negative air spring, and an indexed travel system (8 positions)
• Double-Air spring system: high volume positive and negative air springs
• "D-Loc" 15mm bolt-on thru axle
• Max rotor size: 203
• 1.5" tapered steerer tube diameter

• Steerer Type: Tapered
• Brake Type: Post Mount 180
• Negative Spring: Air
• Travel (mm): 160
• Offset: 44
• Axle to Crown Length: 553
• Front Axle: 15mm Thru x 110mm
• Maximum Tire Width: 75
• S.H.I.S. Stem Clamp Diameter: 28.6
• Color: Gloss Black
• Crown Race: 40
• Weight: 2050
• Wheel Size: 27.5"
• External Adjustments: High Speed Compression Damping
• External Adjustments: Low Speed Compression Damping
• External Adjustments: Rebound Damping
• Defined Color: Black
• Positive Spring: Air
• Stanchion Diameter: 35
• Steerer Tube Length (mm): 265
