CAMPAGNOLO
Campagnolo Bora Ultra WTO 45 Disc Road Bike Wheels 10-13 Speed
Campagnolo Bora Ultra WTO 45 Disc Road Bike Wheels 10-13 Speed
Regular price
$2,099.00 USD
Regular price
$3,674.95 USD
Sale price
$2,099.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Campagnolo's Bora Ultra WTO 45 has the perfect balance of speed, agility and stability, making it the best choice for all-round riders. The rim's versatile design takes account of real-world riding conditions, not just those created in a wind tunnel, and the result is the most efficient drag-reducing rim shape available.

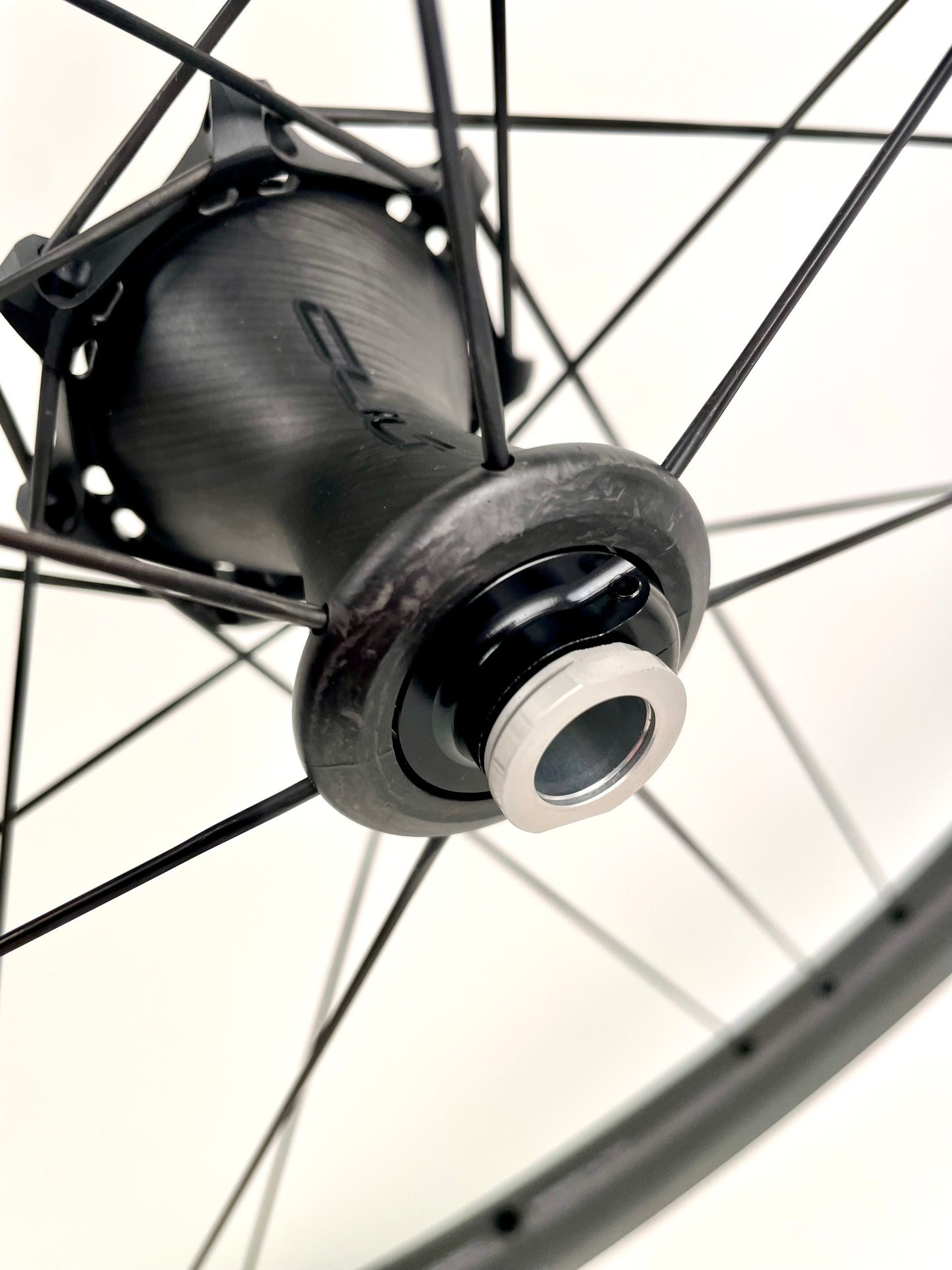

Now even lighter, thanks in part to its Hand Made Ultra-Light Carbon (H.U.L.C.) construction, the Bora Ultra WTO 45 has slimmer Aero Elliptical spokes and hidden nipples to help slice through the air. Campagnolo's beautifully moulded carbon hub body is securely bonded to a light aluminium hub flange, and integrated radial spoke seats ensure perfect alignment. A uniquely stunning C-LUX finish and new, subtle Bora Ultra graphics ensure the new wheels have the show to match their go.

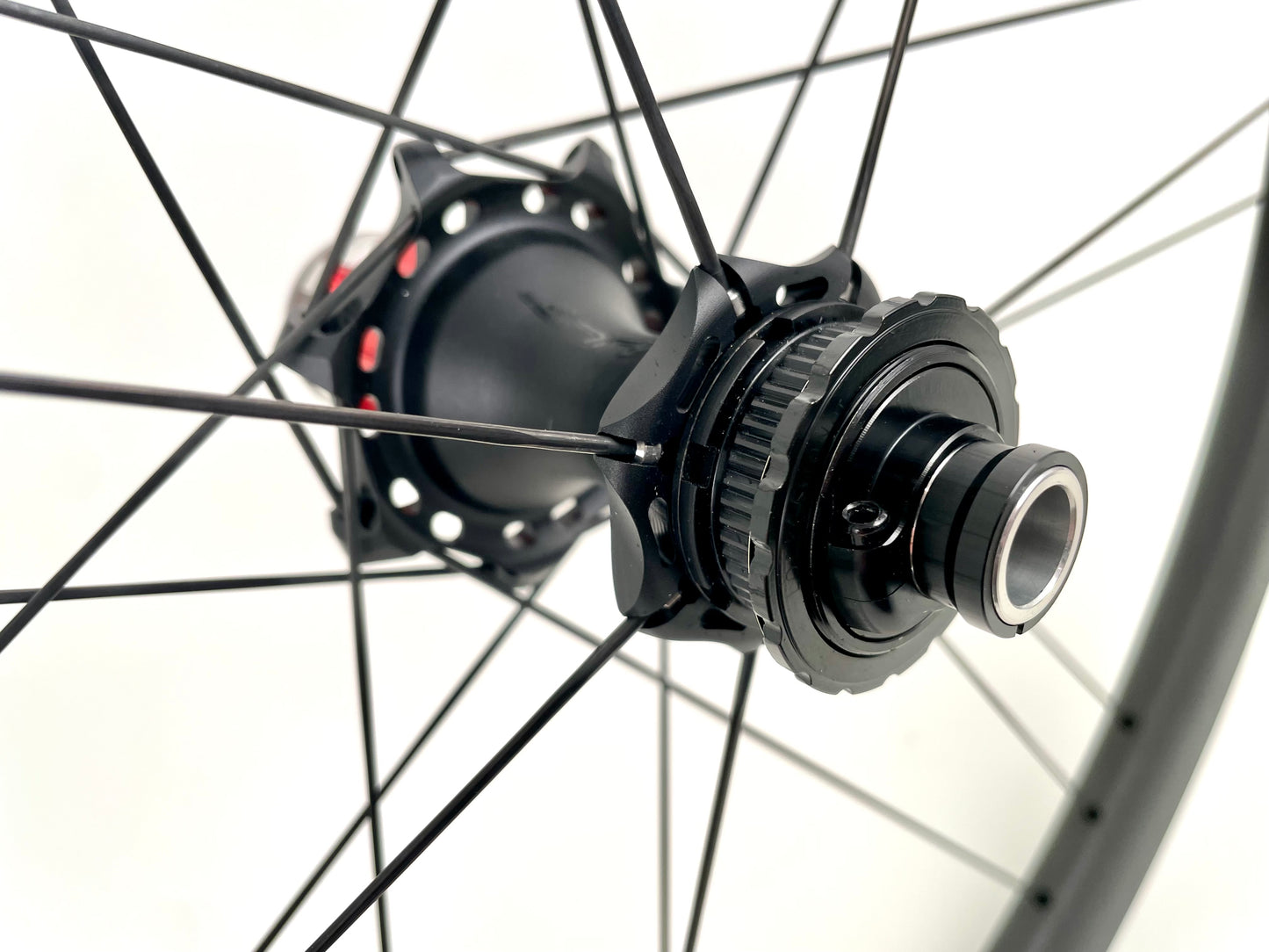

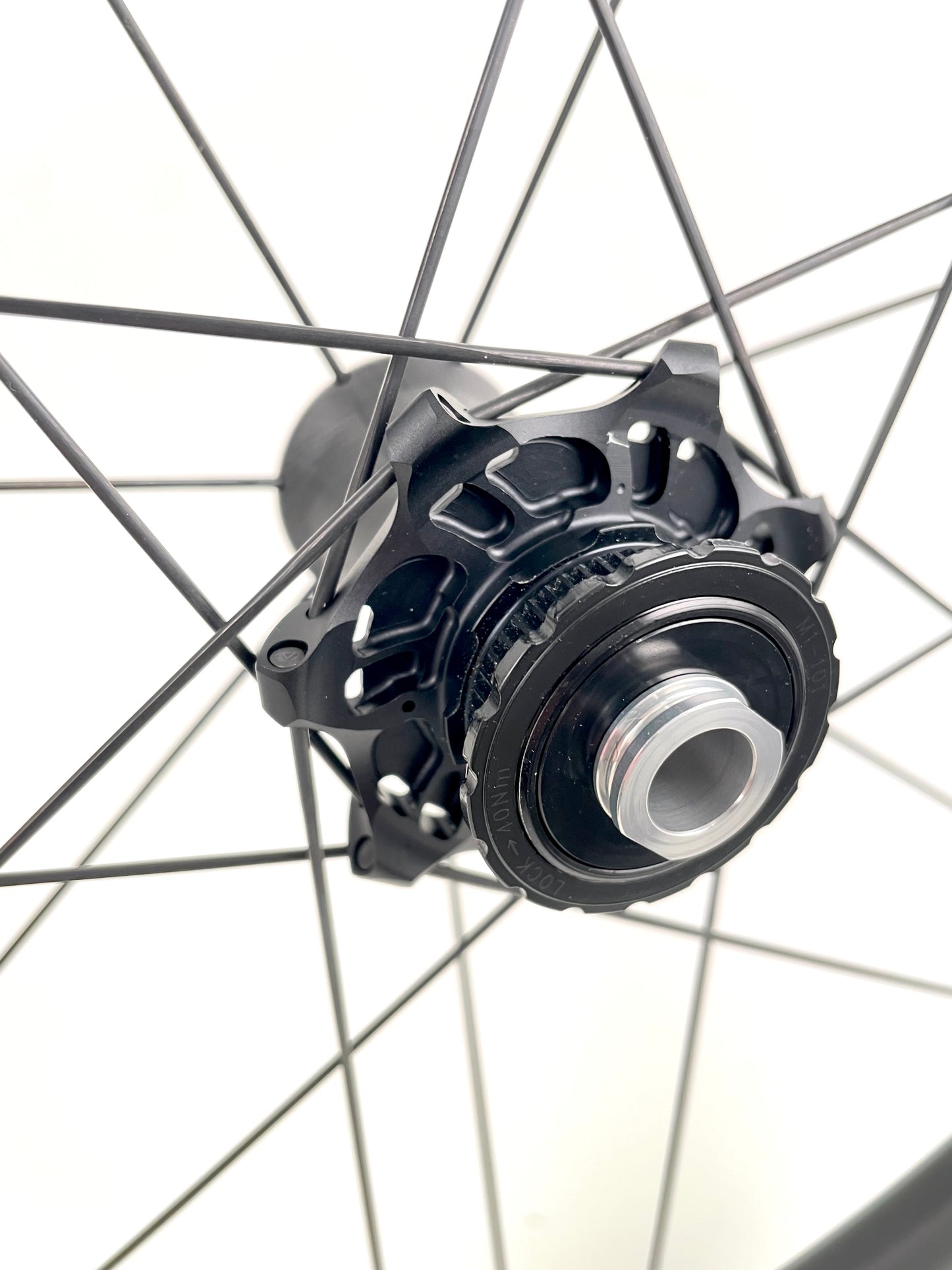

Campagnolo's CULT ceramic bearings spin effortlessly within both the front aerodynamic carbon body and the rear aluminium shell of the disc hubs. The rear oversized 36 tooth ratchet system can be driven by N3W, XDR or HG freehub bodies.
The 2-Way Fit rims are ready for immediate tubeless use without rim tape, designed for tyre widths from 23mm, they're aerodynamically optimised for 25mm tyres.
Undeniable efficiency:
Overall wheel efficiency is determined by overcoming aerodynamic resistance, rolling resistance and the effects of weight and gradient.
Rolling resistance for this rim profile was found to be lower with a 19mm internal width rim bed, particularly with 25mm or 28mm tyres, but aerodynamics are optimised with 25mm.
With a system weight of 87kg, a 25mm tyre's rolling resistance at 40km/h is: tubular 30 watts, clincher 28 watts, tubeless 25 watts.
Therefore Bora Ultra WTO has 2-Way Fit rims for tubeless, tubeless-ready or clincher tyres.
Perfect alignment:
Campagnolo mould the nipple and valve holes into the rims, so no carbon fibres are cut by drilling.
Each spoke hole has an internal nipple seat, wrapped into the rim's carbon layup, which is specifically aligned to the intended hub.
Aero Mo-Mag nipples are perfectly aligned with each spoke for a more accurate wheel build, with reduced localised stress and improved fatigue life.
Stop and go:
All of the new Bora Ultra WTO wheels are designed for AFS (centerlock compatible) disc rotors.
Campagnolo's unique G3 spoke system counteracts the main source of torque at each hub.
CULT ceramic bearings keep the Bora Ultra WTO hubs spinning freely for 5 1/2 times longer than standard steel bearings.
Oversized 36 tooth ratchet freehub is fast to engage and very durable, plus it accepts N3W, XDR and HG freehub bodies.
Specs:
SPOKES
Spokes: 24 Aero Elliptical, straight pull, double-butted
Spoke pattern G3
Nipples Aluminium Aero Mo-Mag, self-locking, internal
Hub:
Hub type: Bora Ultra, carbon body
Rear hub type: Aluminium body, 36 tooth ratchet freehub
Hub width: 100-142mm
Axle type: 12mm aluminium thru axle
Bearings: CULT ceramic, cup and cone
Brake interface: AFS disc
Rim:
ASTM classification: 1
Material: H.U.L.C UD high-strength carbon fibre
Finish: C-LUX
Tyre interface: 2-Way Fit
Tyre compatibility: Tubeless, tubeless-ready, clincher
Recommended tyre size: 700c, from 23mm
Rim height: 45mm
Internal width: 19mm
External width: 26.1mm
Decals: Water transfer DCS (Dark, copper shaded)
Tire Compatibility:
Tubeless
Tubeless-ready
Clincher
Assembly:
The Bora Ultra WTO 45 Disc Brake wheel is entirely hand-assembled by a specialised Campagnolo technician and is 100% checked by electronic instrumentation. This procedure ensures that every single Campagnolo wheel offers maximum performance and reliability.
Included:
Aero Mo-Mag nipple maintenance kit
Tubeless valves
AFS lockrings

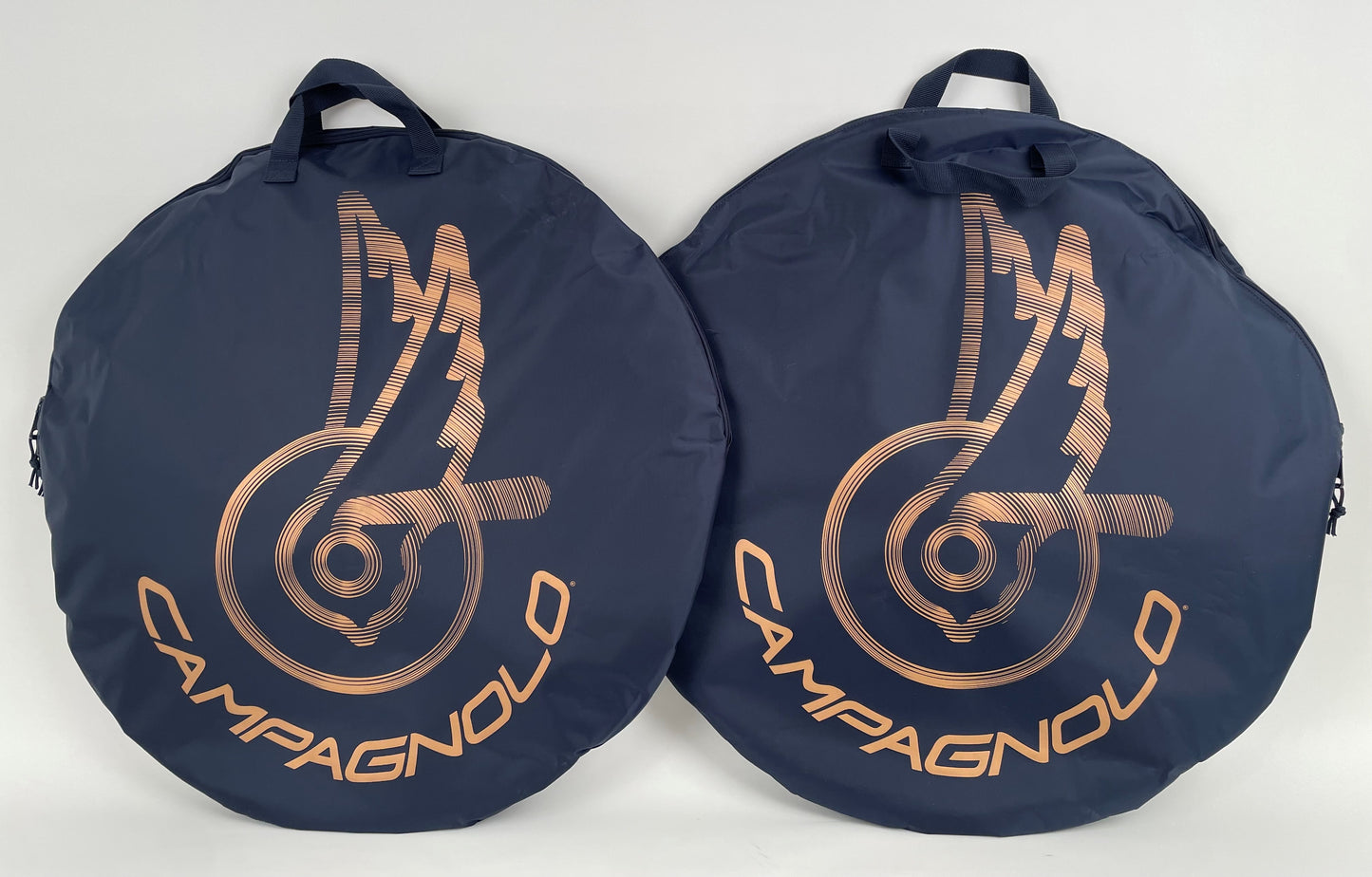

Campagnolo wheel bags
Campagnolo accessories bag
Tyre levers
Campagnolo N3W Z11 adapter (on Campy freehub version).
We can change to XDR or standard Shimano if you need. Just leave a note at checkout!
