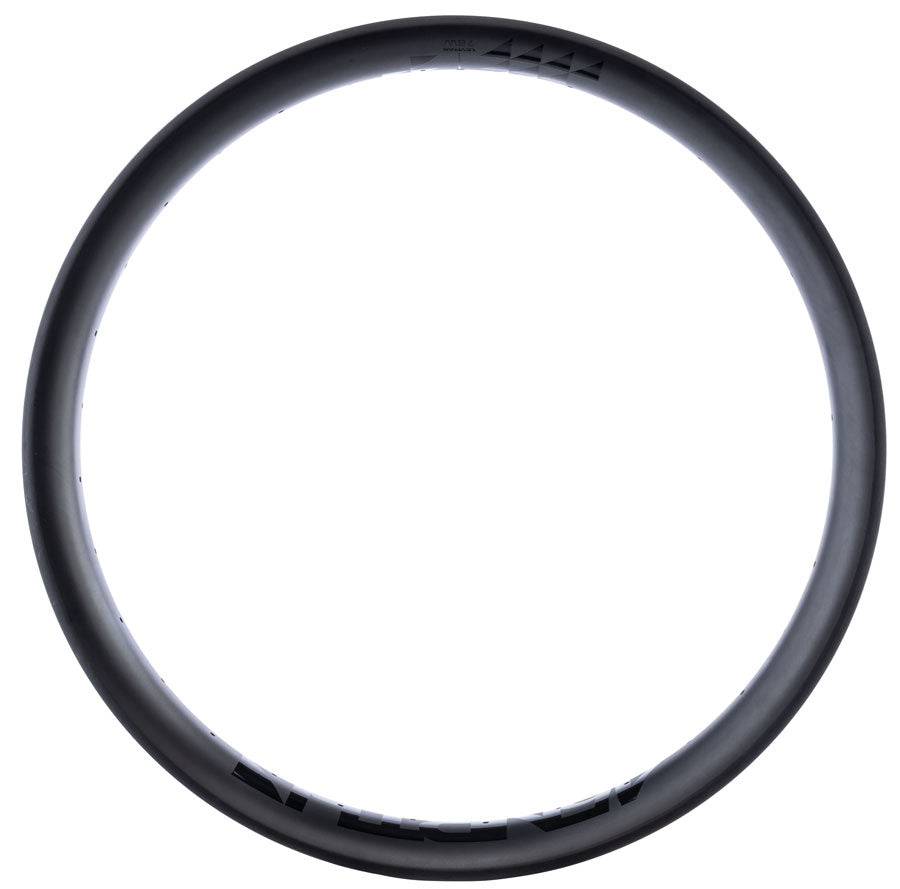

45NRTH Levitas 76W Rim - 27.5", Disc, Matte Carbon, 32H

Levitas was designed around the unique characteristics of 45NRTH fat bike tires. The internal widths are tailored for each diameter to create a broad, well-supported tire profile that maximizes flotation, traction, and control for the most demanding winter conditions. A narrower spoke bed reduces weight where possible while reinforced rim walls provide strength and impact resistance.

• 32-hole drill pattern for strong wheel builds
• Optimized relationship between tire volume and rim width for consistent contact patch and tire profile
• Fits 4-5" wide tires
• Recommended single layer of 30mm rim tape. Recommended valve length 65mm (or longer)
• Tested to ASTM Category 3, suggested weight limit of 300 lbs
• Max inflation 30 psi

• Brake Compatibility: Disc Only
• Rim Width (External): 83
• Rim Width (Internal): 76
• Brake Track: None
• Manufacturer Spec ERD (mm): 535.57 with washers
• Material: Carbon
• Valve: Presta Long 56-74mm
• Color: Matte Carbon
• Weight: 660
• Wheel Size: 27.5" Fat
• Defined Color: Black
• ISO Diameter: 584 / 650b / 27.5"
• Eyelets: None
• Tire Intended Use: Fat Bike
• Hub Drilling: 32
• Rim Joint: Carbon
• Rim Depth (mm): 35
• Rim Material: Carbon
• Tire Type: Tubeless Ready
